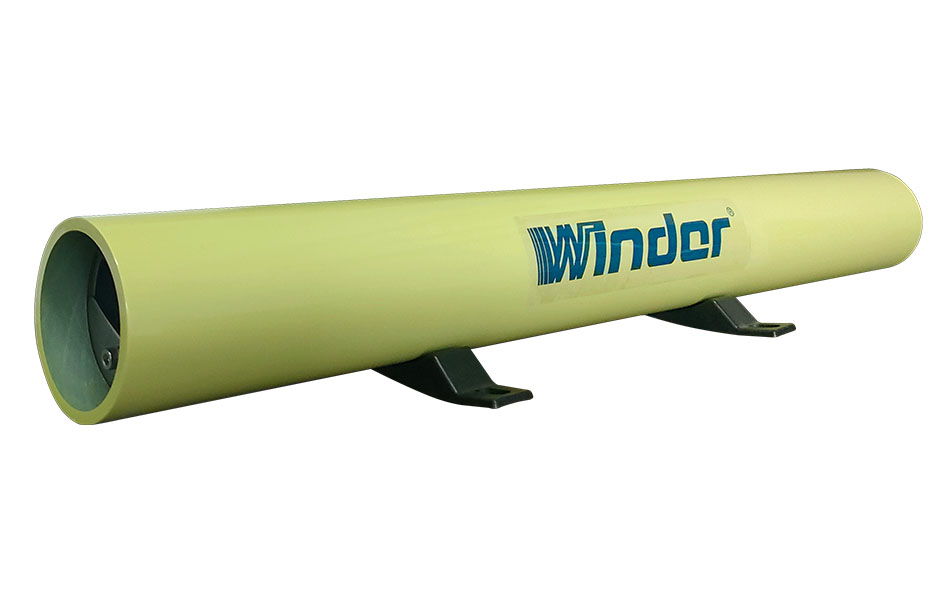

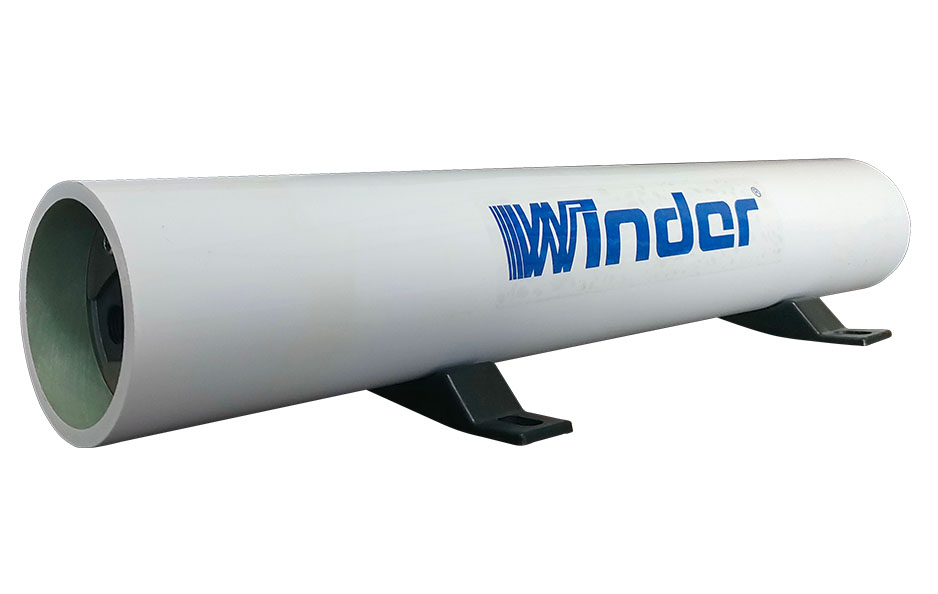

2.5-inch end-to-end fiberglass reinforced plastic RO membrane housing – reverse osmosis membrane pressure housing – 2514/2521/2540 membrane elements are universal
2.5-inch end-joined fiberglass reinforced plastic RO membrane housing Reverse osmosis membrane pressure vessel 2514/2521/2540 membrane elements Universal This product is a 2.5-inch (2.5″) small glass fiber reinforced plastic (FRP) reverse osmosis membrane housing, which is specifically designed for compact reverse osmosis (RO) systems as a high-pressure pressure vessel. It is made of high-performance fiberglass reinforced plastic and has a sturdy structure, corrosion resistance, and perfect compatibility with 2514, 2521, and 2540 standard RO membrane elements. It offers two pressure level options: 300 PSI (normal) and 1000 PSI (high pressure), with standard 1/4-inch NPT/BSP internal threads for easy installation. It is ideal as the core component for small commercial pure water equipment, laboratory ultra-pure water systems, medical devices, and small industrial reverse osmosis integrated equipment.
In order to make up for the abrasion resistance of FRP, embedded steel rings were added to it. Winder® products will wind the embedded ring in the membrane housing during the winding process, which is integrated with the membrane housing and is not easy to fall off. The size and thickness of the embedded ring is proportional to the pressure of the membrane housing. The larger the pressure of the housing, the steel ring will thicken, so that the membrane housing and the pressure head are more firmly connected. The embedded rings are all made of stainless steel 316L, which is more resistant to corrosion and higher temperatures, and has a long service life.
FRP Pressure Vessel Manufacturer Industrial Seawater Purify Equipment RO Water Filter Element Vessel 8inch FRP Membrane Housing for Sewage Treament System
The inner wall of the membrane housing is as bright as a mirror, which can facilitate the disassembly and assembly of the membrane core; it can ensure that the membrane housing has no leakage problem.
The design of the red plug: the production material is ABS modified raw material, which is more durable; the design of the four corners is more convenient and quick to install.
π-shaped silicone ring: using food street silicone raw materials, this design is double-sealed, double-safe, leak-proof and reliable, and the quality is more stable.
There is a unique ID code on the inner wall of each membrane housing, which is used as an anti-counterfeiting mark and can also make the model of the membrane housing clear at a glance.
